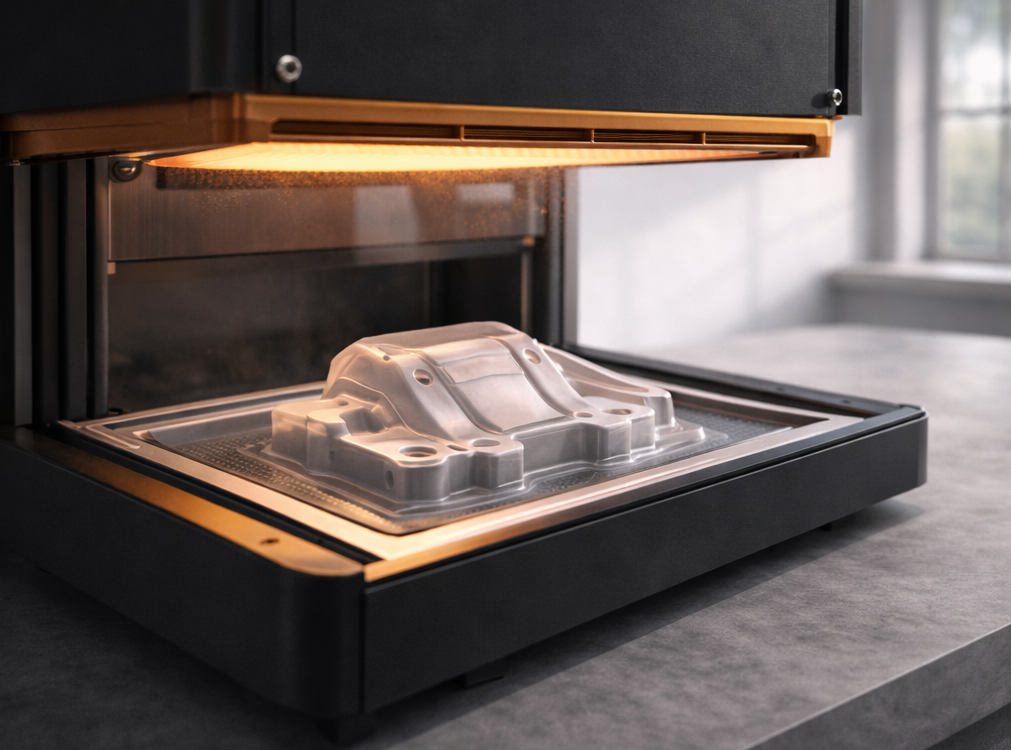

What Is a Vacuum Forming Machine?
Vacuum forming is a manufacturing process used to shape heated plastic sheets over a mold using vacuum pressure.
This technique is widely used in industries such as packaging, product design, prototyping, and manufacturing.
Vacuum forming machines are commonly found in design studios, educational environments, and fabrication labs.
How Vacuum Forming Works
The vacuum forming process typically follows several steps:
-
A plastic sheet is heated until it becomes flexible.
-
The sheet is positioned over a mold.
-
A vacuum is applied beneath the mold.
-
The vacuum pulls the plastic tightly against the mold surface.
-
The plastic cools and retains the shape of the mold.
Once formed, excess material may be trimmed to create the final part.
Common Applications
Vacuum forming is used in a variety of industries.
Common uses include:
-
product packaging
-
product enclosures
-
prototype housings
-
educational demonstrations
-
mold replication
Designers often use vacuum forming to quickly produce multiple copies of a part.
Materials Used in Vacuum Forming
Several thermoplastic materials are commonly used for vacuum forming.
Examples include:
-
ABS
-
PET
-
polystyrene
-
acrylic
Material selection depends on factors such as strength, flexibility, and temperature resistance.
Vacuum Forming in Product Development
In product design workflows, vacuum forming is often used alongside other digital fabrication technologies.
For example:
-
a 3D printer may create a mold
-
the mold is used in a vacuum forming machine
-
the formed plastic part becomes the final prototype
This workflow can allow designers to produce functional prototypes relatively quickly.
